Subscription based permissions in Azure Cost Monitor

The Azure Cost Monitor Team is excited to announce the launch of the new “subscription based permissions – feature”, starting today.
When it comes to ensuring effective cloud use at your company, nothing will help you make better decisions than the right, relevant data. With this new feature, adressing specific ressources to each department has never been easier.
This great feature also makes it very easy for Service Providers to give their customers transparency about their subscription based spendings.


How to get started?

Starting with the new feature in the Azure Cost Monitor is this simple:

1. Upgrade your account to a team account:

team-02-migrate-team

2. Invite co workers to your team:

team-04-add-user-modal

3. Assign subscription based permissions:

select-subscriptions


Interested in the “subscription based permission – feature”?

The new feature brings structure to all of your subscriptions in the Azure Cost Monitor and makes cloud cost management easy and comfortable.

Try the new feature today by simply logging into your Azure Cost Monitor enterprise account. If you don’t have an enterprise subscription, try it for free for a certain time, as we are currently in the technical preview phase.

Any questions, wishes or ideas? Try our feedback portal or drop a mail to help@azure-costs.com.

Azure App Services: Restart your node-WebJobs during GitDeploy

With Azure App Services (aka. Azure WebSites), the Microsoft Azure cloud offers a great, highly scalable and simple way to host cloud and SaaS services. Besides ASP.NET, several other platforms and languages are supported, e.g. node.js, Python or Java. I personally prefer hosting services written in node.js on this nice managed service of Microsoft.

A common problem for web-services are background jobs like e.g. sending out e-mails or calculating some sales numbers once a day. This use-case can be addressed with Azure WebJobs which are running on the same instance as the web service itself. Jamie Espinosa described the behaviour of WebJobs on an Azure Friday very well. Azure Friday is BTW hosting a whole series about Azure WebJobs, so check it out to get more information.

Normally when deploying a web service into the Azure WebSite the associated WebJobs will be restarted out of the box. A special thing of node.js based Azure WebJobs is that only when the run.js file is changed the WebJob will be restarted. This means when the system just changes an other module or updates the npm dependencies no restart will be enforced.

The whole deployment is based on the Kudu-Project and this project offers so called Post-Deployment-Action-Hooks to trigger a simple script right after the successful deployment of the sources. When ever the run.js file becomes touched the system just restarts the web service, so the solution for this deployment issue was to write a short batch which touches all run.js files:

@echo off

echo Restarting all WebJobs
for /R ..\wwwroot\App_Data\jobs %%G IN (*run.js) DO echo Touching %%G
for /R ..\wwwroot\App_Data\jobs %%G IN (*run.js) DO touch %%G

exit 0

This script can be registered as Post-Deployment-Action-Hook via FTP at every Azure WebSite. Just copy the file to the following location:

deployment-hooks

This works fine but after all there is still one piece missing: How to get the deployment hooks deployed with git themselves? There are several options to reconfigure the deployment hook directory but I was not able to figure this out. So when you have an idea, feel free and leave a message to discuss any options.

Azure Cost Monitor announces Team-Support

The azure cost monitor team is very happy to announce the launch of the team-support feature, starting today. This great feature allows enterprise accounts to be accessed by as many users as needed, simplifying the sharing of spending dashboards and cost data within an enterprise.

Team-Support enables companies to use the azure cost monitor without concerning about departmental boundaries and makes processes like cross-charging possible & easy.


What comes with the new team-support feature?

Limitless amount of users: Create an unlimited number of users for your azure cost monitor enterprise account.

Role based access: Define the role of new users and specify whether each user can add new users, renew EA tokens, add new EA contracts and other important actions.

Mail based invitations: Enter the email addresses of the users you would like to invite to your account. The addressed user gets an invitation and can join your team fast and simple.


How to get started?

Adding new users to your azure cost monitor team account is this simple:

  1. Log in to your azure cost monitor account and go to “Manage Teams”

    team-01-manage-team

  2. If you already have an existing account migrate your account into a team account.

    team-02-migrate-team

    This migration only needs to be done once. During this process the system converts your personal account in a team account and assigns all existing enterprise agreements to the team.

  3. Click “Add User to the Team”

    team-03-add-user

  4. Fill in the new user’s email address and choose the users role. After that click “Add” and “Save” the changes.

    team-04-add-user-modal

    The new user will get a mail with instructions for activating the login.


Interested in the team support feature?

The new team support feature brings transparency to all stakeholders within an enterprise and makes azure cloud cost management easy and comfortable.

Try the new team support feature today by simply logging into your azure cost monitor enterprise account. If you don’t have an enterprise subscription, try it for free for a certain time, as we are currently in the technical preview phase.

Any questions, wishes or ideas? Try our feedback portal or drop a mail to help@azure-costs.com.

Build your own Twitter – Part 3 – Azure Timeline Service for Node.js

The last part of this article series described the principles of Twitter-like services based on Azure Storage Tables. This part now describes the structure of a new node module which acts as a timeline service. This service can be used very easily in existing node projects.

To integrate this node module just install the azure-timeline-service via node package manager. This integrates everything that is required automatically:

npm install azure-timeline –save

The module allows to post events to a specific user timeline and the timeline of all followers. The following snip-let illustrates it:

var user = azureTimelineService.createSubject(“<>”, “<>”);

user.postEvent(‘login’, { timestamp: new Date() }).then(function() {
console.log(“DONE”);
});

Every method works asynchronous based on promises. Following another user is as simple as posting an event to a timeline

user.follow(user01).then(function() {
console.log(“DONE”);
})

Following a user means all events this user posts to a timeline will be posted to the followers timeline as well. Last but not least loading a timeline is important. The system returns currently all events from a timeline which is a point of change in the future:

user.loadTimeline().then(function(events) {
console.log(events);
})

All samples are implemented in the sample file of the Azure Timeline project here. Any questions? Feel free to open an issue at GitHub or just stay in touch via this block.

Azure Cost Monitor for Service Providers & Resellers

Are you an Azure reseller or a cloud service provider offering Microsoft Azure services? If so, we start offering you a smarter way to have control about the cloud spendings of your customers or to give your customers a great monitoring tool, seamlessly integrated in your service architecture. The Azure Cost Monitor Reseller Portal is a new way for service providers and resellers to monitor, manage & measure costs in the Microsoft Azure cloud:

csp01

Besides the Enterprise Edition features, the portal will come with these additional features:

  • Customer Management Dashboard
    Manage access to the Azure account or a specific subscription for your customers. Invite new users or assign an existing Azure Active Directory group to provide access rights.
  • Custom SSL & Domain support
    Integrate the service seamlessly in your or the customers service architecture, with a service provider or customer specific domain incl. SSL certificates.
  • Custom pricing & currency support
    Especially when you resell just a simple subscription or if you add some reseller service charges to the pricing, a custom pricing table helps you to manage this complexity.
  • Data access via RESTful API
    A strong integration, e.g. into an existing data warehouse or CRM application is easy and simple with the existing RESTful API.
  • Allows to resell enterprise editions
    Having a reseller edition allows every reseller and cloud service provider to resell Azure Cost Monitor enterprise editions with an individual margin.

Interested? Signup for the early adaptor program and get direct access to the current system.

csp02

We hope this feature makes it simple to maintain your customers with the Azure Cost Monitor and makes it much easier for you to manage and control all costs. Any questions, wishes or ideas? Try our feedback portal or drop a mail to help@azure-costs.com.

ngHelper-Toolbar: Now supports secondary actions & dividers

The $toolbar service is a great helper when it comes to building toolbars in AngularJS applications. The new version 0.0.3 allows you to handle new secondary actions, as shown here in the Azure Cost Monitor application:

secondary-actions

The secondary action can be defined in the addItem function similar to all other options the API supports:

$toolbar.addItem(‘childContract, contract, null, null, true, ‘/report/1234’, null, ‘activeContract’, ‘fa-trash’, function () {                   $scope.removeContract(contract);
});

Making the menu more user-friendly can be achieved by adding dividers in the structure. When using the special menu title “DIVIDER” the system will use this in the menu structure as divider:

$toolbar.addItem(‘user.divider’, ‘DIVIDER’, null, null, true, null, null, ‘user’);

The new navigation infrastructure of the Azure Cost Monitor is using the $toolbar service from the ngHelper-Toolbar project. We hope this feature makes it simple to maintain your toolbars. Any questions, wishes or ideas? Try the issue button on the GitHub page or contact the author via this blog.

Build your own Twitter – Part 2 – Azure Table Structures

Azure Table Store offers a very important scalability feature which should be used when working with timelines. The partitionkey in every table allows Microsoft to put entities on different servers. Let’s recheck the limits of Azure Table Store to make a right decision (http://azure.microsoft.com/en-us/documentation/articles/azure-subscription-service-limits):

  1. Azure Table Store returns 1000 entities per page. If the result contains more entities the client needs to query several times -> A timeline service should never page to render the first timeline
  2. Azure Table Store returns 2000 entities with 1KB of size per second as a guaranteed SLA –> A timeline service should never request more data per page to stay performant
  3. Azure Table Store allows to store up to 500TB per storage account, it could be stored in one table or different –> A timeline service should be able to handle several storage accounts, at least theoretically.

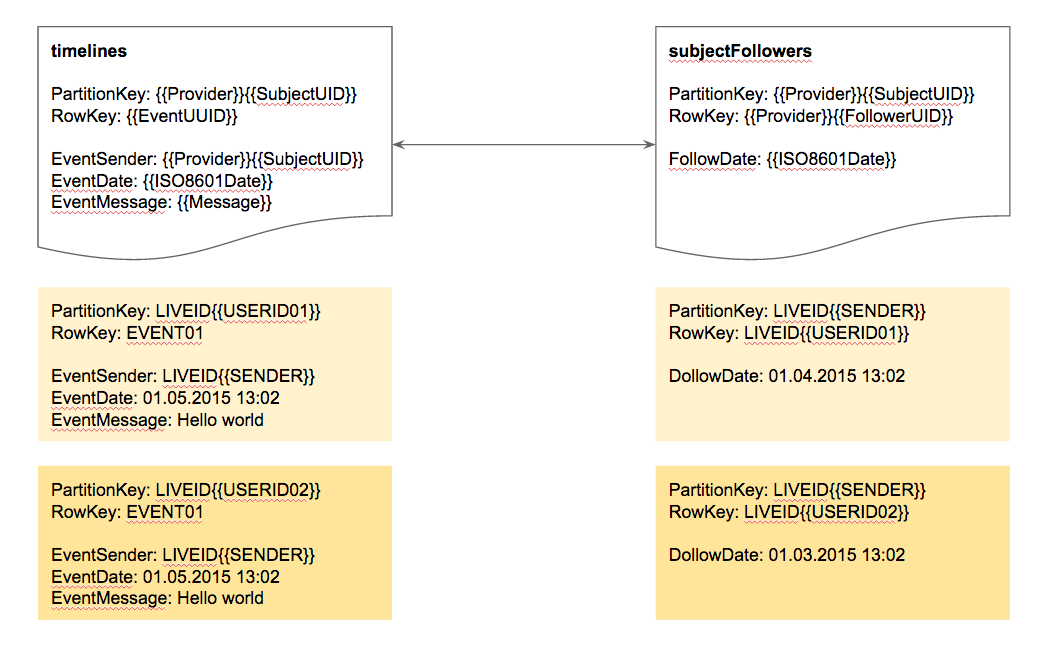

With all this limitations in mind it’s possible to build a table structure for the timeline service as follows:

  1. timelines
    The timlines table contains all timelines the system has registered. The partitionkey of this table is timeline identifier so every subjects timeline can be stored on different nodes. The partitionkey should be a key generated from the subjects  identification, e.g. liveid{{UID of LiveId-Token}}. This prevents the system to lookup an other table to get the timeline identifier when the subject tries to render them.In addition the event which should be stored on several timelines can be identified by his event identifier as the row key. This allows the system to also implement removal jobs because a multiple stored event can be identified as the single one.
  2. subjectFollowers
    the subjectFollowers are a list of subjects following a specific subject. The partitionkey of this table is also the subject identifier so it’s easy to get all followers of a subject. In addition the row key becomes important because it identifies the subject who is following someone else. This gives a system the option to find all followers of a specific subject and all subjects a specific subject is following very fast. Works well in both directions.

This simple data structure allows the service to handle hundreds of different timelines and relations. Especially the background worker can now identify on which timeline the event needs to be stored.

followers

Last but not least, when it comes to requesting the timeline content it will only be returned in pages of 250 elements to stay healthy with the performance. An other page can be requested at any time when the user starts paging.

Build your own Twitter – Part 1 – A timeline service with Azure Table Store

The Azure Cost Monitor and many other cloud services I’m working on, needed a timeline service to present aggregated events and actions similar to an audit trail. When I was thinking about this, it came to my mind that the requirements I had were very similar to a Twitter feed but with less features.

Let’s recap what is needed to build a timeline service in general:

  1. The Timeline
    The Timeline is associated with a subject and contains tons of events happened and triggered by other subjects the timeline owner follows.
  2. The Event
    The Event is the incident that happens in the real world and is stored in different timelines. This means every follower of a subject will get the event in his own timeline. So a single event can be stored in many different timelines.
  3. The Subject
    The Subject is someone or something which triggers an event. Normally it is a natural person with an own timeline but it could also be a piece of hard/software.
  4. The Target(s)
    The Targets are subjects with a timeline who are following other subjects. This means every subject becomes a follower or target as soon as it is following an other subject. Posting an event then means sending the message to the timeline of every subject following the sender.

The following picture should give a good overview about the entities in the timeline service:

Screen Shot 2015-03-21 at 10.40.15

Starting with this definitions in mind it’s possible to identify components needed for building a timeline service:

  • Storage for the timeline
    The storage for the timeline needs to be able to offer a very fast read performance and an OK write performance. The performance should especially not be dependent from the amount of data in the system. I chose Azure Table Store for this because I can store the information in different partitions and get a clear read performance SLA for every partition. In addition to this it’s totally cheap and payable – also for startups.
  • Access broker to the storage
    Normally NoSQL storage which can be used for timeline access needs a little helper to manage access. In general a RESTful web-service acts as an access broker and hands out pre-signed links to the timeline content. This ensures that no timeline data needs to go through the timeline service at all. Only the pre-authorised access links will be generated for the system. This also means that at the end the client SDK needs to handle the raw data for the timeline. This makes it a bit more complicated but it lets the performance stay in a good range. An other important operation needs to be implemented in the Access broker as well: Posting events to the subjects followers is a slow and complex operation the system needs to implement with a direct server call normally executed asynchronous with the help of a worker job.
  • Metadata storage for subject and targets
    Last but not least the combination of subject & targets needs to be stored somewhere in the backend. Azure Table Store can be used for this as well. All the operations to create a follow-ship can be implemented in the timeline service as well but not the rights & permission checks to post or create relations because the timeline service should be used machine-2-machine with API tokens.

The following graphic shows the technical architecture of a good scalable timeline service based on Azure services:

arch-timeline

The next part of this tutorial will focus on the correct and scalable table structure based on Microsoft Azure Table Storage.

Azure Cost Monitor sends notifications when Azure EA token has expired

Microsoft offers all EA customers the Azure EA portal to manage different accounts and subscriptions. In addition to this portal, every customer can issue up to two security tokens to 3rd party applications. This allows the applications to interact and work with the customers EA data like the Azure Cost Monitor is doing.

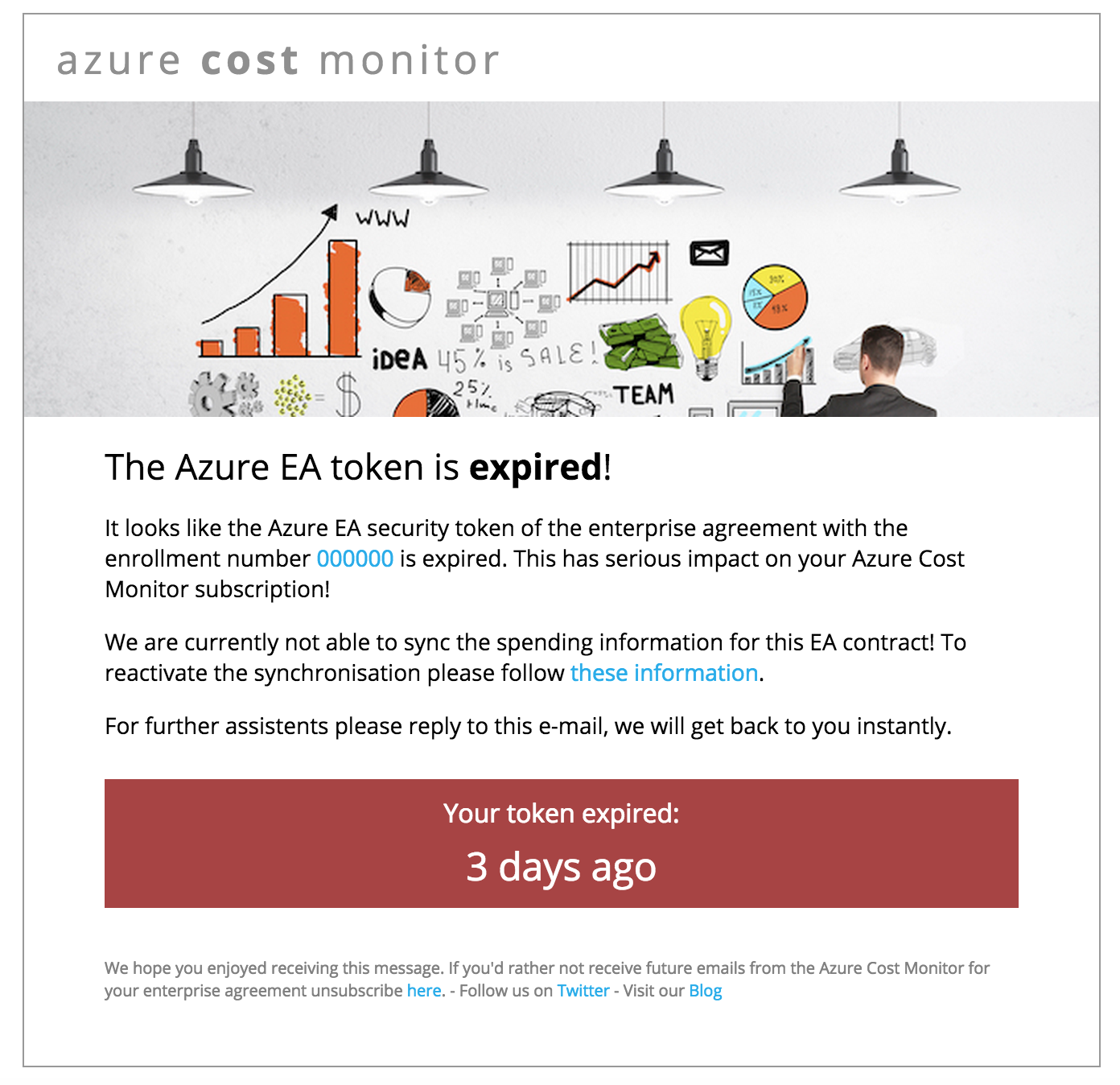

Starting this week the Azure Cost Monitor analyses the existing Azure EA security tokens and is able to detect when a token has expired. As soon an expired token is detected the owner of the contract will get an information via mail:

blog-azure-cost-ea-token-expired

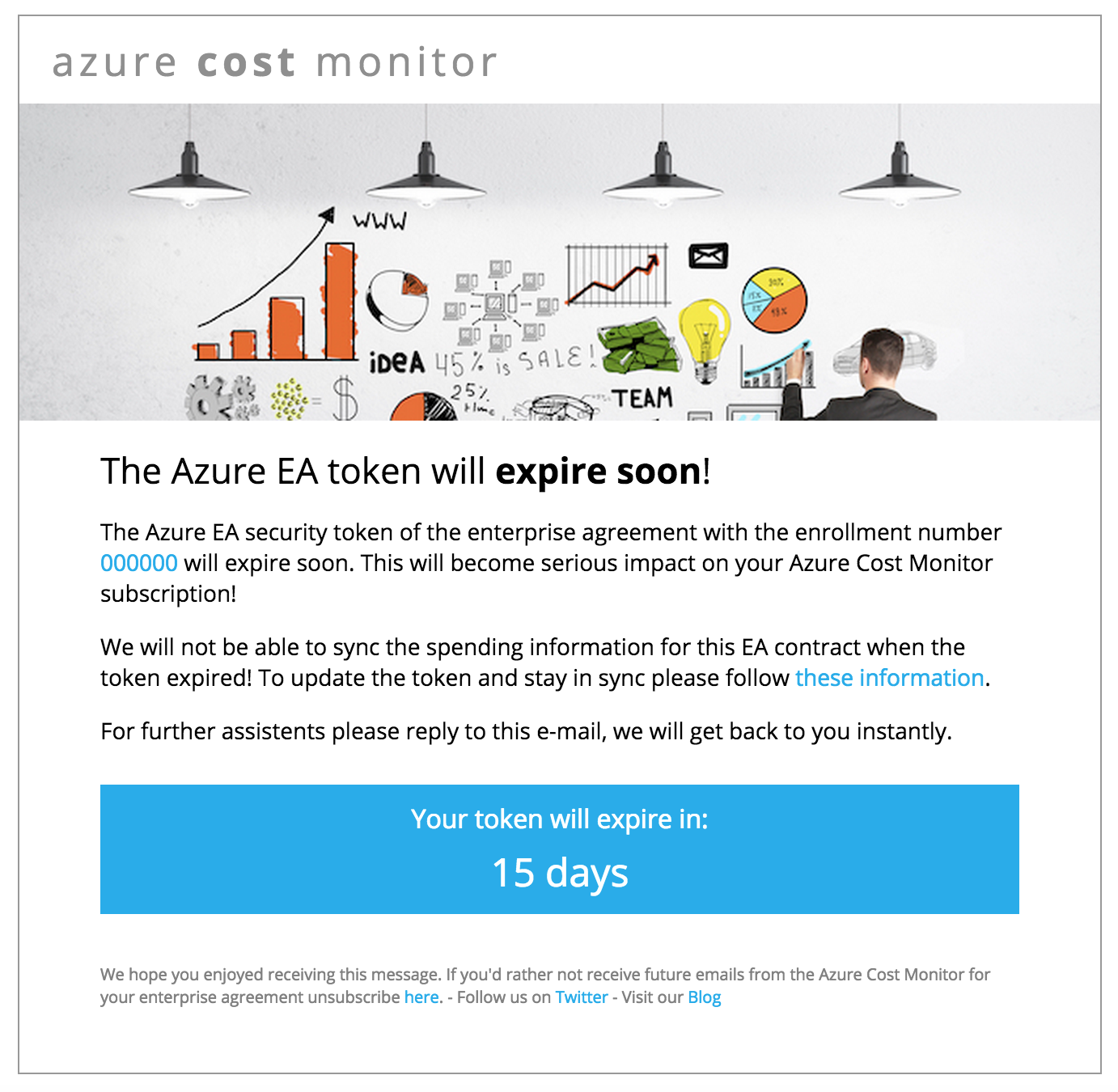

In addition, the Azure Cost Monitor is now able to warn about tokens that will expire very soon. The owner of the affected contract will get an information via mail as well:

blog-azure-cost-ea-token-will-expire

This new feature should help you as a contract owner to stay in sync every day. It also helps us to have our system stay healthy and performant every day. Please update the tokens directly when you get this kind of notifications. Additional information on how to renew a token can be found in our knowledge base here.

We hope this feature makes it simple to maintain your Azure Cost Monitor account and makes it much easier for you to manage and control all costs. Any questions, wishes or ideas? Try our feedback portal or drop a mail to tickets@azurecostmonitor.uservoice.com.

Azure Table Store: How to backup safely

Microsoft Azure Table store is an amazing, simple, cheap and powerful service of the Microsoft Azure cloud. The service is something between a real NoSQL database and a simple KVP-store. I did many projects in the last time where the Azure Table Store was just a fast read cache or also the whole persistency backend.

As soon as the tables in Azure contain important data for the application provided to customers it’s necessary to think about backup. Microsoft guarantees that the data can not be corrupted on the storage (check out my article about the different storage account options) but accidental deletion, data corruption during automated processes or just by mistake can still happen. Where people are working shit sometimes happens, nobody can change this.

Backing up table stores is not that easy as backing up blob storage based on the idea of stamp copies. Every table needs to be replicated into another table or exported to the blob account. In my current project we searched for the perfect solution and finally came up with the following stack of services: We are using the Azure Cloud Backup from RedGate to export all tables in a GEO redundant storage account. With this solution we get a daily backup of our tables in parallel to Azure SQL backups based on the Microsoft built in features. The backups are stored into a GEO redundant storage account which helps to ensure that we have access to this backups even when one datacenter of Microsoft burns 🙂 or just looses power.

This setup in combination with the Microsoft Backup support for Azure SQL is very powerful and gives everybody the good feeling of being able to recover when chaos happens.
